GTIN Code 0844117001167
*Non contractual photo
GTIN Code 0844117001167

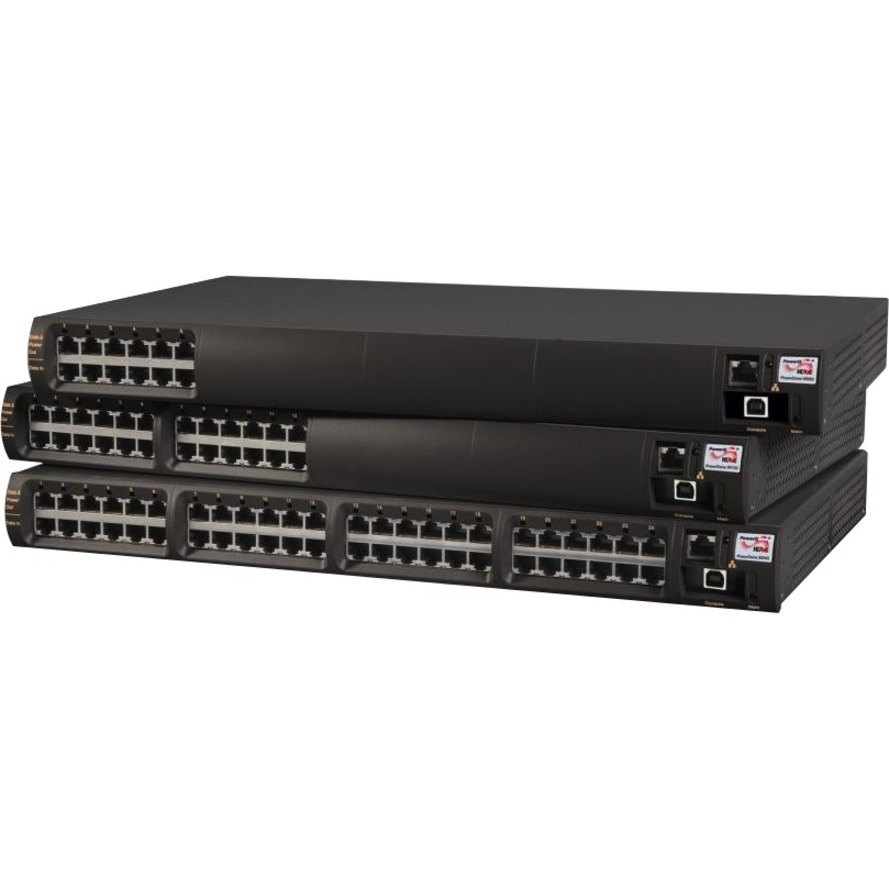

Microchip PD-9006G PoE Injector
DC AND AC INPUT POWER CORD
-
- 0 expected daysASK FOR PRICE
Technical infomations
| Brand Name | Microchip |
| Certifications & Standards |
|
| Depth | 272 mm |
| Environmentally Friendly | Yes |
| Form Factor | Rack Mountable |
| Height | 44 mm |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage | 55 V DC |
| Manufacturer Website Address | http://www.microchip.com |
| Manufacturer | Microchip Technology Inc. |
| Marketing Information | Microsemi's PD-9000G Family is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. The PD-9000G Family includes 6, 12 and 24 port models, which are backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and WLAN access points. With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network. For secure remote management, all PD-9000G models include PowerView Pro management platform. PD-9000G Features
|
| Maximum Frequency | 60 Hz |
| Maximum Output Power | 36 W |
| Maximum Output Voltage | 55 V DC |
| Minimum Frequency | 50 Hz |
| Product Model | PD-9006G |
| Product Name | PD-9006G 6-Port PoE Injector |
| Product Series | PD-9000G |
| Product Type | PoE Injector |
| Weight (Approximate) | 6.49 kg |
| Width | 438 mm |
