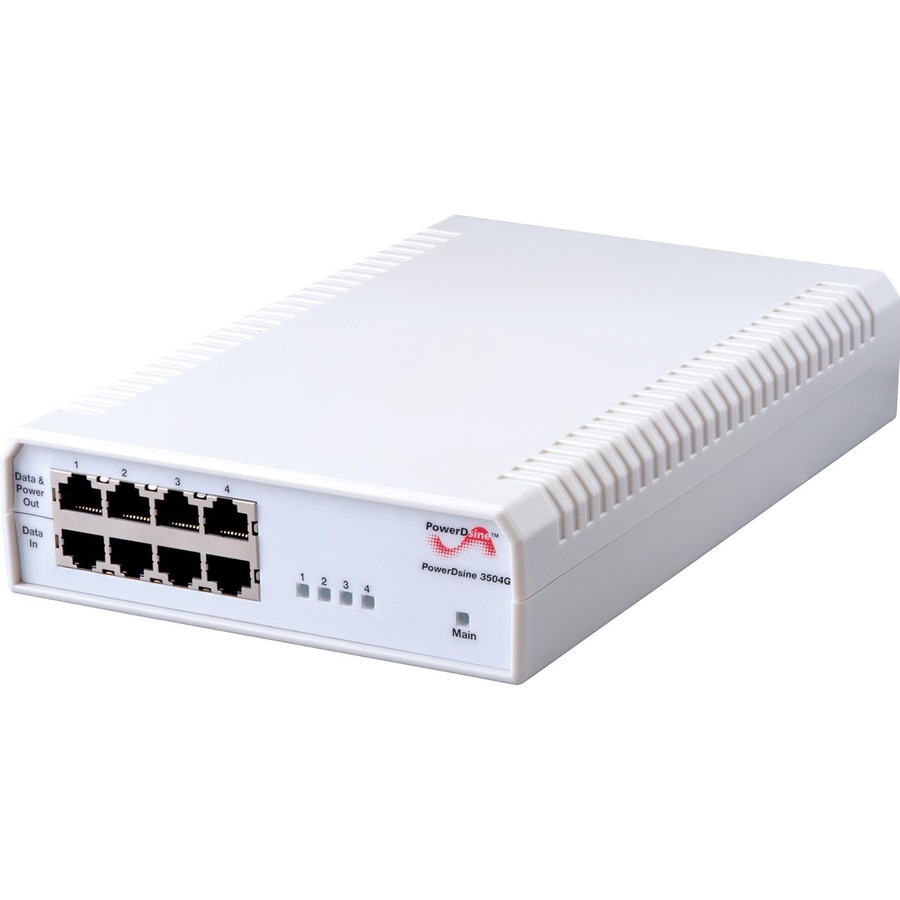

Microchip PD-3504G PoE Injector Hub
AC INPUT POWER CORD
-
- 0 expected daysASK FOR PRICE
Technical infomations
| Brand Name | Microchip |
| Certifications & Standards |
|
| Depth | 43 mm |
| Environmentally Friendly | Yes |
| Height | 224 mm |
| Input Ports | 4 x 10/100/1000Base-T |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PD-3504G/AC-EU |
| Manufacturer Website Address | http://www.microchip.com |
| Manufacturer | Microchip Technology Inc. |
| Marketing Information | The Microsemi's PD-3504G offers a cost effective, IEEE 802.3af compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. The PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network. |
| Maximum Frequency | 60 Hz |
| Maximum Input Current | 1 A |
| Maximum Output Power | 15.40 W |
| Maximum Output Voltage | 55 V DC |
| Minimum Frequency | 50 Hz |
| Minimum Input Current | 400 mA |
| Output Ports | 4 x 10/100/1000Base-T |
| Product Model | PD-3504G |
| Product Name | PD-3504G PoE Injector Hub |
| Product Type | PoE Injector Hub |
| Weight (Approximate) | 635 g |
| Width | 148 mm |
