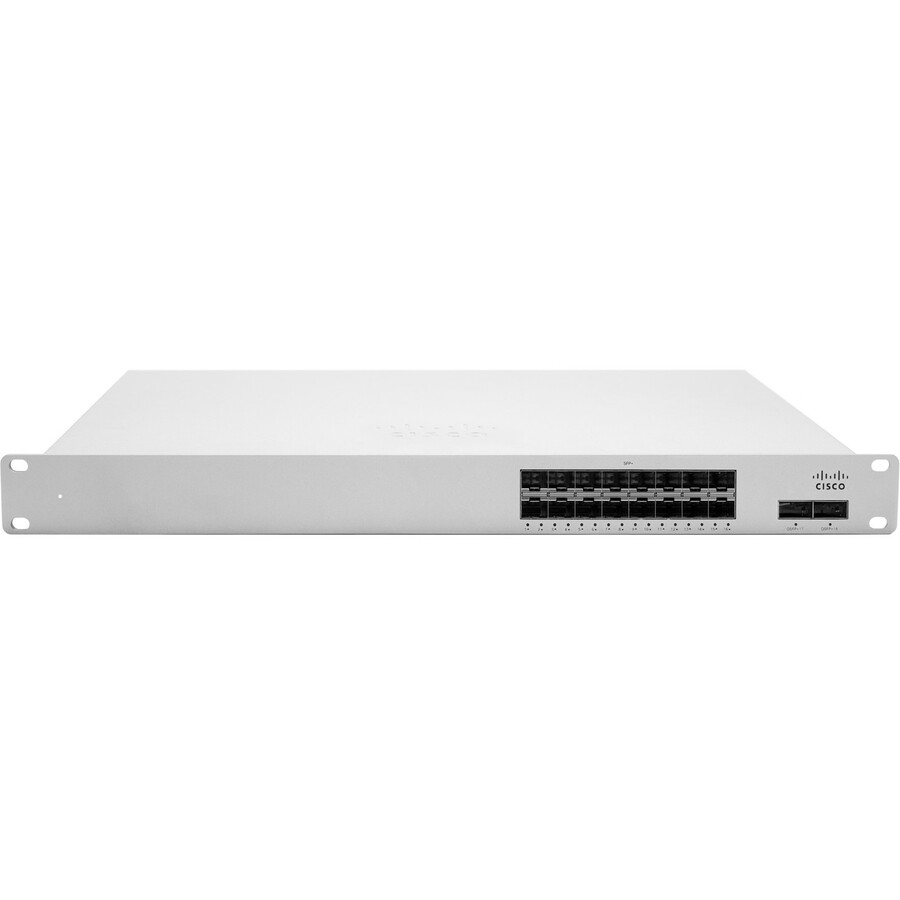

Meraki MS400 MS425-16-HW Manageable Ethernet Switch - 40 Gigabit Ethernet, 10 Gigabit Ethernet - 40GBase-X, 10GBase-X
16X 10G SFP+ SWITCH
Technical infomations
| Brand Name | Meraki |
| Compatible Rack Unit | 1U |
| Depth | 485 mm |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 40 Gigabit Ethernet |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | SFP+ |
| Form Factor | Rack-mountable |
| Height | 45 mm |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer Part Number | MS425-16-HW |
| Manufacturer Website Address | http://www.cisco.com/global/fr/ |
| Manufacturer | Cisco Systems, Inc |
| Marketing Information | The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments. EXPANDING CLOUD MANAGEMENT TO THE CAMPUS Cisco Meraki aggregation switches extend Meraki's cloud management to campus deployments. Just like our access switches, these aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files - or pre-staging. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Modular | Yes |
| Network Technology | 10GBase-X |
| Network Technology | 40GBase-X |
| Number of SFP+ Slots | 16 |
| Number of Total Expansion Slots | 18 |
| Port/Expansion Slot Details | 16 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 2 x 40 Gigabit Ethernet Expansion Slot |
| Power Source | Power Supply |
| Product Family | MS400 |
| Product Model | MS425-16-HW |
| Product Name | Cloud-Managed 16 port 10GbE Aggregation Switch with 40GbE Uplinks/Stacking |
| Product Series | MS400 |
| Product Type | Ethernet Switch |
| Shared SFP Slot | No |
| Stack Port | Yes |
| Uplink Port | Yes |
| Width | 487 mm |
