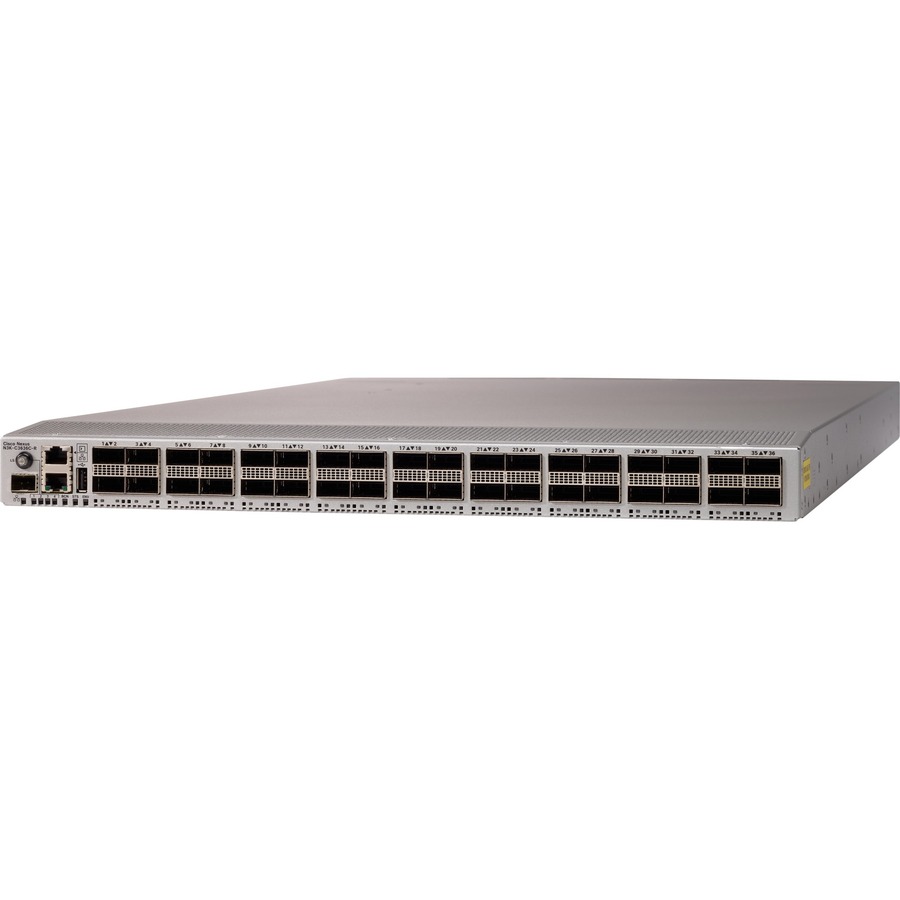

Cisco Nexus 3000 3636C-R Manageable Layer 3 Switch - 100 Gigabit Ethernet - 100GBase-X
MACSEC
Technical infomations
| Brand Name | Cisco |
| Compatible Rack Unit | 1U |
| Depth | 793 mm |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 40 Gigabit Ethernet |
| Expansion Slot Type | QSFP28 |
| Form Factor | Rack-mountable |
| Height | 41.9 mm |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer Part Number | N3K-C3636C-R |
| Manufacturer Website Address | http://www.cisco.com/global/fr/ |
| Manufacturer | Cisco Systems, Inc |
| Marketing Information | The Cisco Nexus® 3636C-R switch is a high-speed, high-density 10-, 25-, 40-, or 100-Gigabit Ethernet (GE) switch designed for the data center spine. The large buffers and routing table sizes of the 3636C-R also make this switch an alternative for a wide range of applications, such as IP storage, demilitarized zone (DMZ), big data, and edge routing. The switch comes in a compact 1-Rack-Unit (1RU) form factor and provides extensive Layer 2 and Layer 3 functions. It is part of the R-Series family and runs industry-leading Cisco® NX-OS Software. The comprehensive programmability features enable organizations to run today's applications while also preparing them for demanding and changing application needs. The Cisco Nexus 3636C-R switch supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs. The 3636C-R is a Quad Small Form-Factor Pluggable (QSFP) switch with 36 QSFP28 ports. Each QSFP28 can operate at 100 or 40 Gigabit Ethernet or in a breakout cable configuration. |
| Media Type Supported | Optical Fiber |
| Modular | Yes |
| Network Technology | 100GBase-X |
| Network Technology | 40GBase-X |
| Number of Total Expansion Slots | 36 |
| Port/Expansion Slot Details | 36 x 100 Gigabit Ethernet Expansion Slot |
| Power Source | Power Supply |
| Product Family | Nexus 3000 |
| Product Line | Nexus |
| Product Model | 3636C-R |
| Product Name | Nexus 3636C-R Switch |
| Product Series | 3000 |
| Product Type | Layer 3 Switch |
| Redundant Power Supply Supported | Yes |
| Shared SFP Slot | No |
| Stack Port | No |
| Uplink Port | Yes |
| Weight (Approximate) | 16.16 kg |
| Width | 439.4 mm |
