1-PORT OUTDOOR MIDSPAN 90W

PD-9601GCO/AC

GTIN Code 0844117004113

*Non contractual photo

SKU : PD-9601GCO/AC

Return
to list

Compare

GTIN Code 0844117004113

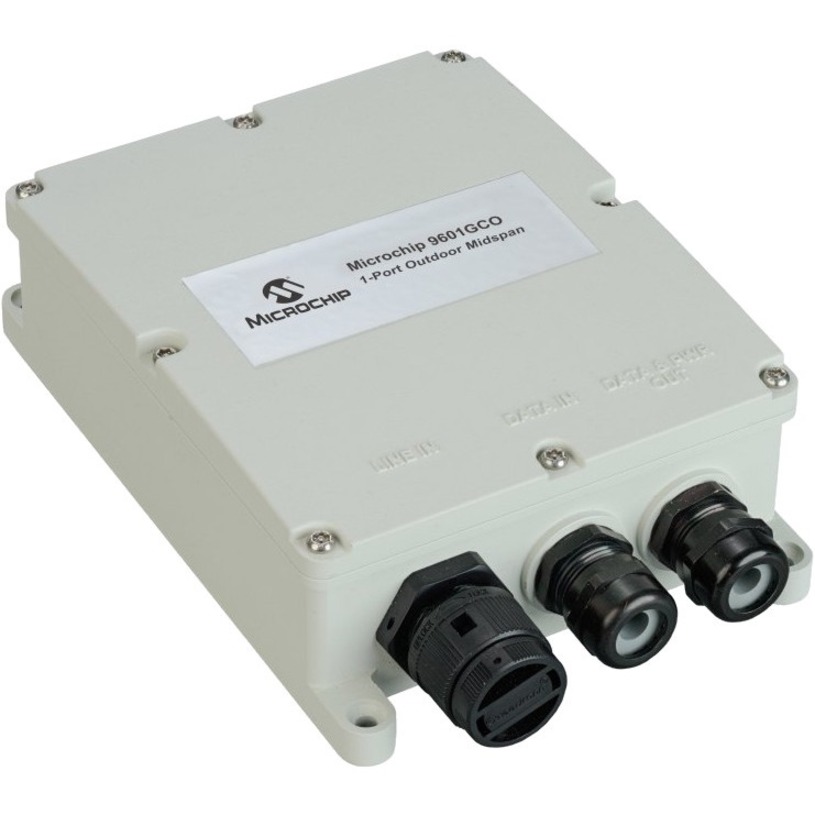

Microchip PD-9601GCO Outdoor PoE Midspan

Microchip PD-9601GCO Outdoor PoE Midspan - 1-Port, IP67, IEEE® 802.3bt Type 4, 90W Outdoor PoE Midspan

Brand Name	Microchip
Certifications & Standards	IEEE 802.3bt Type 4 Standard IEEE 802.3af/at Backward Compatible FCC Part 15, Class B EN 55032 Class B EN 55024 VCCI UL/IEC/EN 62368-1 Dust and Water Intrusion: EN60529, Weather Ratings: IP66, IP67, NEMA 250 Level 4X Corrosion Resistance: ASTM B-117
Environmentally Friendly	Yes
Height	60 mm
Input Ports	1 x Gigabit Ethernet
Input Voltage	120 V AC
Input Voltage	230 V AC
Length	170 mm
Manufacturer Part Number	PD-9601GCO/AC
Manufacturer Website Address	http://www.microchip.com
Manufacturer	Microchip Technology Inc.
Marketing Information	Microchip's PD-9601GCO Power over Ethernet (PoE) single-port midspan offers a cost effective, IEEE 802.3bt type 4 compliant solution for outdoor installations, guaranteeing 90 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over stan- dard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9601GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equip-ment is protected from outdoor surges.
Maximum Input Current	1.35 A
Maximum Output Power	95 W
Output Ports	1 x Gigabit Ethernet
Product Model	PD-9601GCO
Product Name	PD-9601GCO PoE Injector
Product Type	PoE Injector
Weight (Approximate)	1.72 kg
Width	140 mm
