GTIN Code 0843173150758
GTIN Code 0843173150758

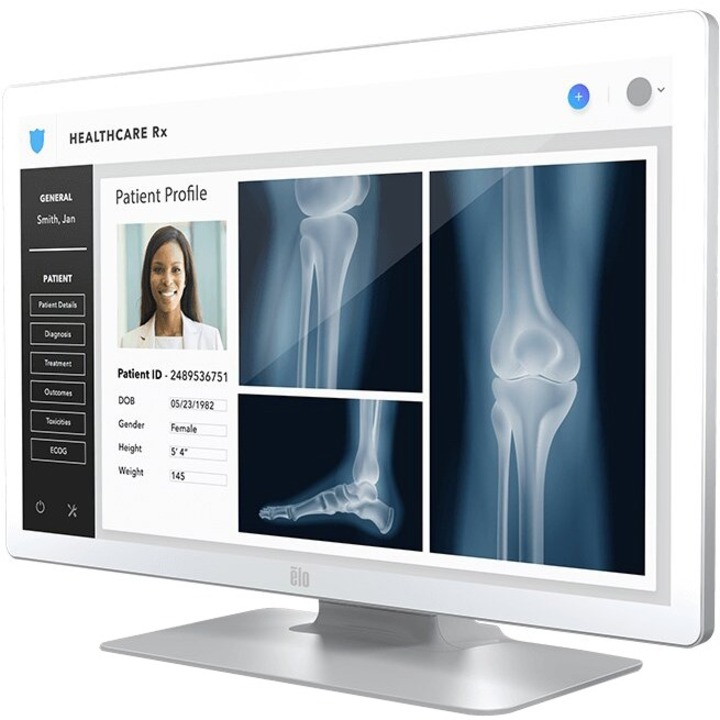

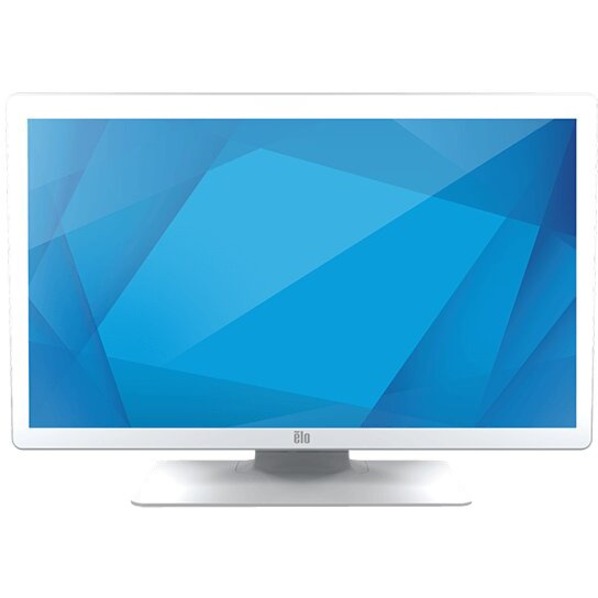

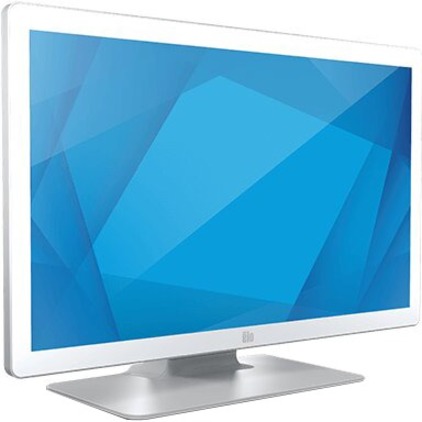

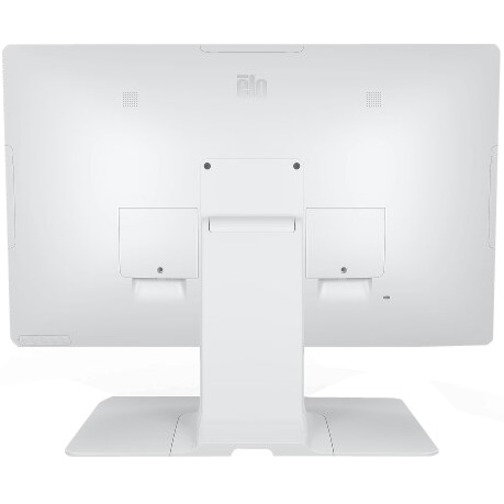

Elo 2703LM 68.6 cm (27-) LCD Touchscreen Monitor - 16:9 - 14 ms Typical
MEDICAL GRADE TOUCH MNTR WHITE
Technical infomations
| Aspect Ratio | 16:9 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 300 cd/m² |
| Built-in Devices | USB Hub |
| Colour Supported | 16.7 Million Colours |
| Depth | 45 mm |
| Energy Efficiency Class (SDR) (from 1st March 2021) | E |
| Environmentally Friendly | Yes |
| Features | Anti-glare |
| Features | Dust Resistant |
| Features | On-screen Display (OSD) |
| Features | OnScreen Control |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| HDMI | Yes |
| Height | 394.2 mm |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Horizontal Viewing Angle | 178° |
| Impact Protection (IK) Rating | IK06 |
| Ingress Protection (IP) Rating | IP54 |
| Manufacturer Part Number | E381844 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Marketing Information | DICOM Medical Grade Touchscreen Monitors The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. IP-54 Rating Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution. IEC 60601 IEC 60601 compliant power supply included. DICOM 14 Ensures accurate and uniform image reproduction for reliable review. Integrated Touch TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves. Built-to-Last Backed by Elo's 3-year standard warranty with optional EloCare service offerings. DICOM 14 -Designed for Consistent Image Review Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve. Enhancing Clinical Workflow with Touch From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience. Medical Device Ready With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical. |
| Maximum Resolution | 1920 x 1080 |
| Mount Type | Pole Mount |
| Mount Type | Wall Mountable |
| Multi-touch Screen | Yes |
| Native Contrast Ratio | 1,000:1 |
| Number of Simultaneous Touchpoints | 10 |
| ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021) | 21 kW |
| Panel Technology | Thin Film Transistor (TFT) |
| Product Color | White |
| Product Family | 03 |
| Product Model | 2703LM |
| Product Name | 2703LM 27- Medical Grade Touchscreen Monitor |
| Product Series | 03 |
| Product Type | LCD Touchscreen Monitor |
| Response Time | 14 ms Typical |
| Screen Mode | Full HD |
| Screen Size Class | 685.80 mm |
| Speakers | Yes |
| Touchscreen Type | TouchPro Projected Capacitive |
| USB | Yes |
| Vertical Frequency | 50 Hz to 75 Hz |
| Vertical Viewing Angle | 178° |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| VGA | Yes |
| Viewable Screen Size | 68.6 cm (27-) |
| Weight (Approximate) | 7.13 kg |
| Width | 647.7 mm |
