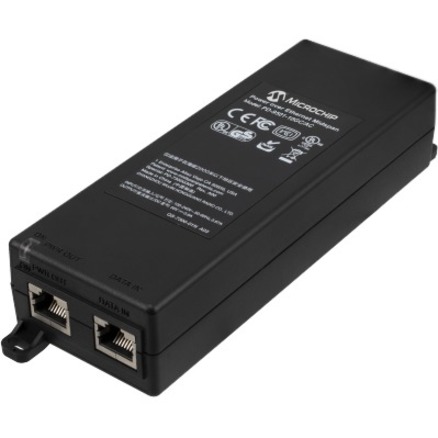

Microchip PD-9501-10GC PoE Injector
10/100/1000 MBPS 10G AC INPUT EU
-
- 0 expected daysASK FOR PRICE
Technical infomations
| Brand Name | Microchip |
| Certifications & Standards |
|
| Compatibility |
|
| Environmentally Friendly | Yes |
| Height | 38.3 mm |
| Input Ports | 1 x 10 Gigabit Ethernet |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Length | 176 mm |
| Manufacturer Website Address | http://www.microchip.com |
| Manufacturer | Microchip Technology Inc. |
| Marketing Information | The Microchip PD-9501-10GC is a single-port, high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac access points, Pan-Tilt Zoom (PTZ) cameras and videophones. PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 Gbps devices such as wireless IEEE 802.11ac access points. |
| Maximum Frequency | 60 Hz |
| Maximum Input Current | 1.50 A |
| Maximum Output Power | 60 W |
| Maximum Output Voltage | 55 V DC |
| Minimum Frequency | 50 Hz |
| Output Ports | 1 x PoE |
| Product Model | PD-9501-10GC |
| Product Name | PD-9501-10GC PoE Injector |
| Product Type | PoE Injector |
| Weight (Approximate) | 331.1 g |
| Width | 67 mm |
