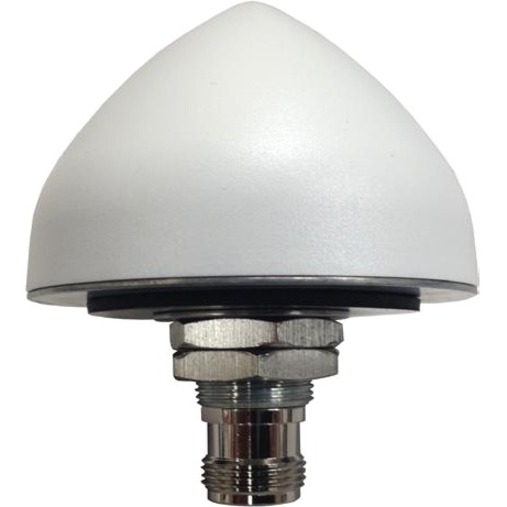

Microchip Antenna for GPS, GLONASS - White
200FT C ANTE KIT
Technical infomations
| Antenna Gain | 40 dB |
| Application/Usage | GLONASS |
| Application/Usage | GPS |
| Brand Name | Microchip |
| Compatibility | Microsemi Products:
|
| Connector Type | BNC |
| Diameter | 66.5 mm |
| Environmentally Friendly | Yes |
| Form Factor | Pole |
| Height | 21 mm |
| Manufacturer Part Number | 990-15202-200 |
| Manufacturer Website Address | http://www.microchip.com |
| Manufacturer | Microchip Technology Inc. |
| Marketing Information | The standard antenna used with the SyncServer S600/S650 and TimeProvider4100 is a high-gain (40 dB) GNSS antenna covering the GPS L1,Galileo E1, GLONASS L1, and SBAS (WAAS, EGNOS, QZSS and MSAS) frequency band (1575 MHz to 1606 MHz). The antenna has a three-stage low-noise amplifier, with a mid-section SAW with a tight pre-filter to protect against saturation by high- level sub-harmonics and L-Band signals, making it excellent for timing applications. An L-bracket for pole mounting and 3-foot BNC(m) to N(f) cable is also included. |
| Operating Frequency Range | 1575 MHz to 1606 MHz |
| Product Color | White |
| Product Name | GPS/Galileo/Glonass Antenna |
| Product Type | Antenna |
| Weight (Approximate) | 150 g |
