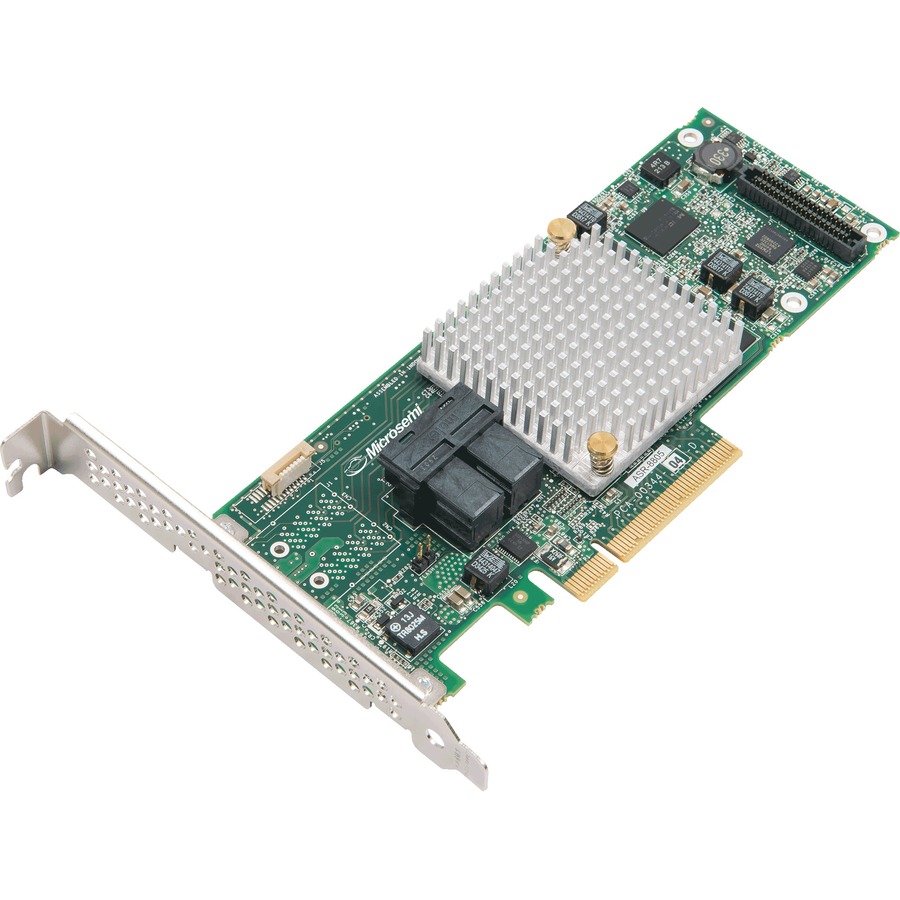

Microchip Adaptec 8805 SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 - 1 GB - Plug-in Card
SINGLE

Technical infomations
Brand Name | Microchip Adaptec |
Cache Memory | 1 GB |
Controller Type | 12Gb/s SAS |
Environmentally Friendly | Yes |
Form Factor | Plug-in Card |
Height | 64.4 mm |
Host Interface | PCI Express 3.0 x8 |
Length | 167.6 mm |
Manufacturer Part Number | 2277500-R |
Manufacturer Website Address | http://www.microchip.com |
Manufacturer | Microchip Technology Inc. |
Marketing Information | Maximum Performance Data center, IT and general consumer server environments have a broad range of requirements-from basic connectivity to extreme data storage capacities. The effective-ness at which their data is accessed and protected is crucial to their ultimate success. The 12 Gbps PCIe Gen3 Series 8 RAID adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS for the most performance-hungry transactional and database applications. Advancing the performance capabilities of SSD caching to a broader set of application workloads, the Series 8Q with max-Cache 3.0 supports read- and write-back caching. By caching writes to a redundant SSD cache pool (RAID1, RAID1E, or RAID5), maxCache 3.0 leverages the performance and latency capabilities of SSD technology for both read and write work-loads. The read caching function is also improved with max-Cache 3.0, with additional optimizations to the learned-path algorithm. maxCache 3.0 SSD caching software is the only caching solution that supports up to 2 TB of SSD cache. Integrated Cache Protection The Series 8 family continues battery-free portfolio. Series 8 adapters can be combined with the Adaptec AFM-700 Flash-based cache protection module (sold separately) to enable instant cache protection. With Series 8, the 81605Z and 81605ZQ models have Flash backup embedded on the board, eliminating the need for a daughterboard and further enabling you to do more with less. Advanced Data Protection and Ease of Use Adaptec RAID Code (ARC) delivers maximum reliability with an industry-leading feature set, including all of the RAID levels the industry has come to expect, plus unique features like flexible configuration modes for the adapter, hybrid RAID and Optimized Disk Utilization (ODU) where no available space is wasted. Adaptec maxView provides an HTML5 web interface that can be used in standard desktops and mobile browsers for all storage configuration and management needs. Benefits
Highlights
|
Number of SAS Ports (Internal) | 8 |
Packaged Quantity | 1 |
Platform Supported | Linux |
Platform Supported | PC |
Platform Supported | SPARC |
Product Model | 8805 |
Product Name | RAID 8805 Single |
Product Series | 8 |
Product Type | SAS Controller |
RAID Levels | 0 |
RAID Levels | 1 |
RAID Levels | 10 |
RAID Levels | 1E |
RAID Levels | 5 |
RAID Levels | 50 |
RAID Levels | 6 |
RAID Levels | 60 |
RAID Supported | Yes |
SAS Connector Details | 2 x SFF-8643 |
Total Number of SAS Ports | 8 |
Weight (Approximate) | 380 g |
