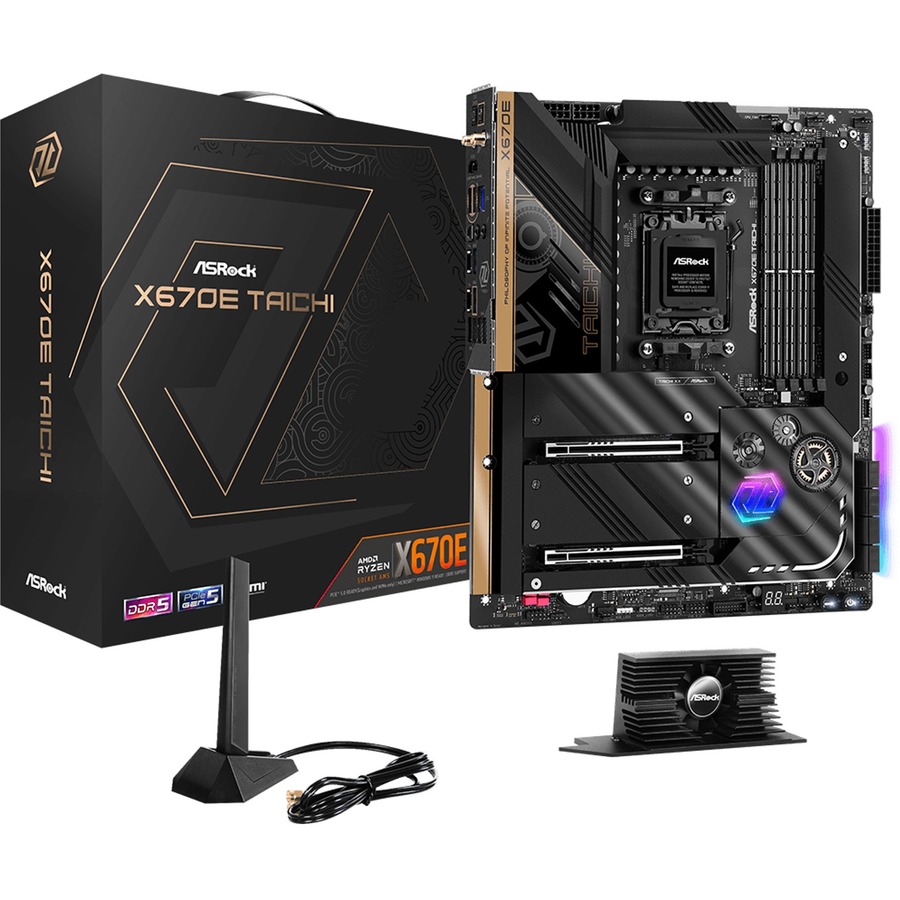

ASRock X670E TAICHI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - Extended ATX
E-ATX, 4XD5 6600 (OC), 2XPCLE 5.0, USB4
-
- 0 expected daysASK FOR PRICE
Technical infomations
| 2.5Gigabit Ethernet | Yes |
| Audio Channels | 5.1 |
| Bluetooth | Yes |
| Brand Compatibility | AMD |
| Brand Name | ASRock |
| Chipset Manufacturer | AMD |
| Chipset Model | X670 |
| Controller Type | Serial ATA/600 |
| Depth | 266.7 mm |
| Environmentally Friendly | Yes |
| Form Factor | Extended ATX |
| Gigabit Ethernet | Yes |
| HDMI Version | 2.1 |
| HDMI | Yes |
| Manufacturer Part Number | 90-MXBJ00-A0UAYZ |
| Manufacturer Website Address | http://www.asrock.com |
| Manufacturer | ASRock, Inc |
| Marketing Information | Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Premium PCB Design The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance. Extreme Overclocking Performance Derived from the -built for stable and reliable- designing concept, ASRock does not compromise on any details. All X670E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Composite VRM Heatsink It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation. DDR5 Memory with Protection Circuit The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. High Speed M.2 Solution The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. |
| Maximum Memory Supported | 128 GB |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Memory Speed Supported | 6600 MHz |
| Memory Technology | DDR5 SDRAM |
| Multi GPU Supported | CrossFire |
| Number of M.2 Interfaces | 4 |
| Number of Memory Slots | 4 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 8 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| Product Model | X670E TAICHI |
| Product Name | X670E TAICHI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 9 |
| Total Number of PCI Express Slots | 2 |
| Total Number of USB Ports | 10 |
| Total Processor Supported | 1 |
| Width | 304.8 mm |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Wireless LAN | Yes |
