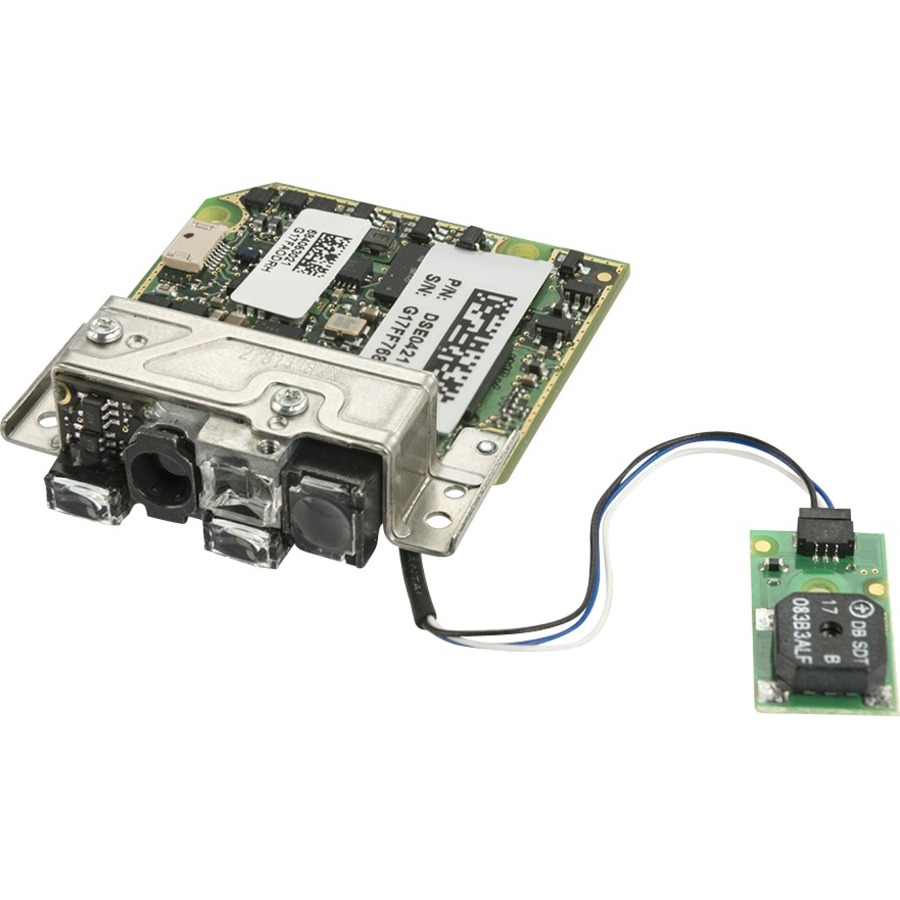

Datalogic DSE04X1 Modular Barcode Scanner
INTERFACE W/MICRO USB CONNECTOR
-
- 0 expected daysASK FOR PRICE
Technical infomations
| Barcode Symbology Supported |
1D / LINEAR CODES:
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes 2D CODES:
|
| Brand Name | Datalogic |
| Depth | 47.9 mm |
| Environmental Certification | China RoHS |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Modular |
| Height | 13.7 mm |
| Host Interface | USB |
| Image Sensor Type | Imager |
| Limited Warranty | 18 Month |
| Manufacturer Part Number | DSE0421-R-K |
| Manufacturer Website Address | http://www.datalogic.com |
| Manufacturer | Datalogic S.p.A |
| Marketing Information | THE MINIATURE 2D DECODED SCAN MODULE The DSE04X1 are the decoded versions of the DE2011-DL ultra-compact high performance 2D imager engine. It is comprised of the DE2011-DL and a decoder board. The scan engines feature an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance. The scan engines feature an outstanding depth-of-field, a large field-of-view, high motion tolerance, snappy reading, and excellent decoding performance on poorly printed codes or bar codes displayed on mobile devices and computer screens. Customers can also choose to add a beeper and/or Datalogic's patented 'Green Spot' technology for good-read feedback. This is particularly useful in noisy environments. EASY INTEGRATION The DSE04X1 scan modules include Datalogic's high-performance decoder which can decode all common 1D and 2D bar codes. Customers can choose an integrated scan module or install the scan engine and decoder board separately, connected by a short flex cable up to 7.0 cm / 2.7 in. This provides mounting flexibility for constrained spaces. The scan module supports USB interfaces (USB keyboard, USB HID and USB com) or UART interfaces (RS-232, TTL-232). Customers who need to connect to a host terminal port can choose either a model with the microUSB connector board (DSE0421-K) or the RS-232/RJ connector board (DSE0451-S). With Datalogic remote management software, customers can manage the firmware of the scan module remotely. |
| Product Model | DSE04X1 |
| Product Name | DSE04X1 2D Decoded Scan Module |
| Product Type | Barcode Scanner |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Weight (Approximate) | 20 g |
| Width | 40.1 mm |
