GTIN Code 0731304224501
GTIN Code 0731304224501

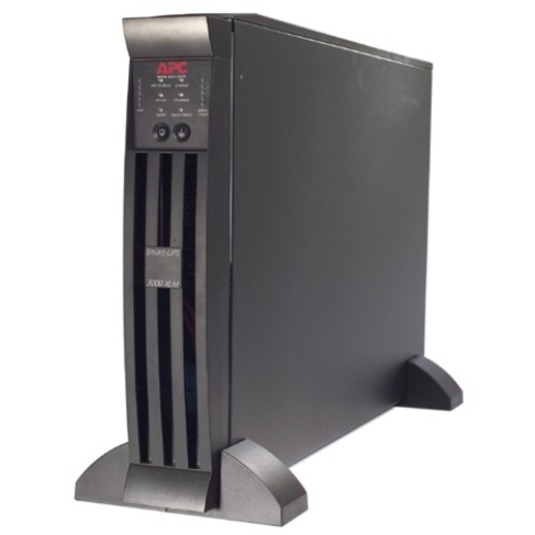

APC by Schneider Electric Smart-UPS Line-interactive UPS - 3 kVA/2.85 kW
230V RACKMOUNT/TOWER IN IN
Technical infomations
| Additional Information |
|
| Alarm | Configurable Delay |
| Alarm | Low Battery |
| Alarm | On Battery |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Battery Chemistry | Lead Acid |
| Battery Management | Intelligent Battery Management |
| Brand Name | APC by Schneider Electric |
| Bypass Switch | Automatic & Manual |
| Certifications & Standards |
|
| Cord Length | 3.05 m |
| Depth | 678.2 mm |
| Emergency Power OFF | Optional |
| Form Factor | Rack/Tower |
| Height | 86.4 mm |
| Hot Swappable | Yes |
| Input Voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (W) | 2.85 kW |
| Load Capacity | 3 kVA/2.85 kW |
| Manufacturer Part Number | SUM3000RMXLI2U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Marketing Information | APC Smart-UPS XL 3000VA protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors. With optional, matching battery packs, run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours, if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP), e-commerce, WiFi (-hotspots- , WLAN/ WWAN, and mixed wireless), and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime. |
| Maximum Operating Temperature | 45°C |
| Network (RJ-45) | Yes |
| Output Voltage | 240 V AC |
| Package Contents |
|
| Plug/Connector Type | IEC 320-C20 |
| Product Color | Black |
| Product Family | Smart-UPS XL |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS XL 3000VA Rack Mountable/Tower |
| Product Series | XL |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Detail | 1 x IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Detail | 7 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Serial Port | Yes |
| Software Included | PowerChute management software |
| Status Indicators |
|
| Surge Energy Rating | 490 J |
| Thermal Dissipation | 300 BTU/h |
| USB | Yes |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 46.72 kg |
| Width | 431.8 mm |
