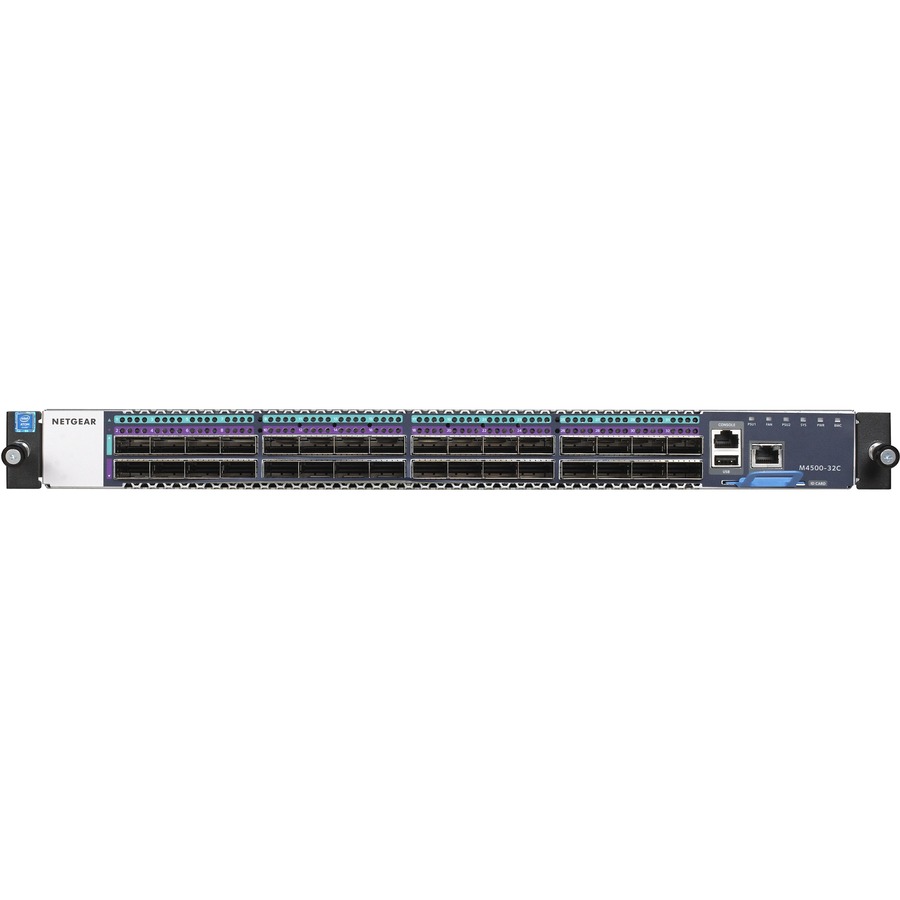

Netgear M4500 CSM4532 32 Ports Manageable Ethernet Switch
Technical infomations
| Brand Name | Netgear |
| Compatible Rack Unit | 1U |
| Country of Origin | China |
| Depth | 508 mm |
| Ethernet Technology | 100 Gigabit Ethernet |
| Expansion Slot Type | QSFP28 |
| Form Factor | Rack-mountable |
| Form Factor | Rail-mountable |
| Height | 43.2 mm |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer Part Number | CSM4532-100EUS |
| Manufacturer Website Address | http://www.netgear.fr |
| Manufacturer | Netgear, Inc |
| Marketing Information | The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box. |
| Media Type Supported | Twisted Pair |
| Modular | Yes |
| Network Technology | 100GBase-X |
| Number of Total Expansion Slots | 32 |
| Port/Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| Power Source | Power Supply |
| Product Family | M4500 |
| Product Model | CSM4532 |
| Product Name | M4500-32C Managed Switch (CSM4532) |
| Product Series | M4500 |
| Product Type | Ethernet Switch |
| Redundant Power Supply Supported | Yes |
| Total Number of Network Ports | 32 |
| Weight (Approximate) | 9.77 kg |
| Width | 439.9 mm |
