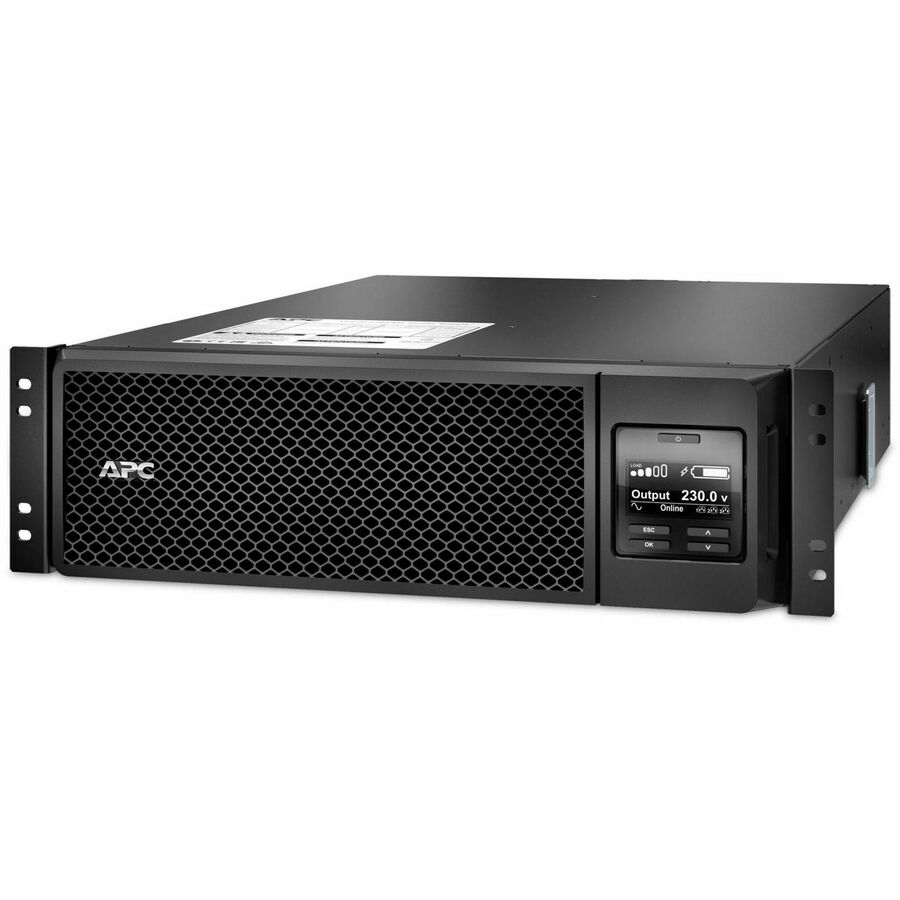

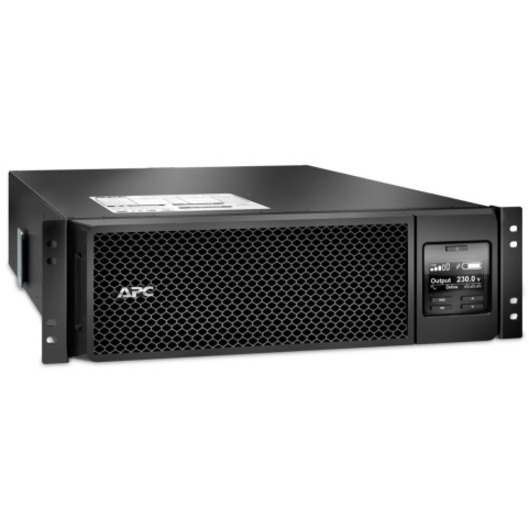

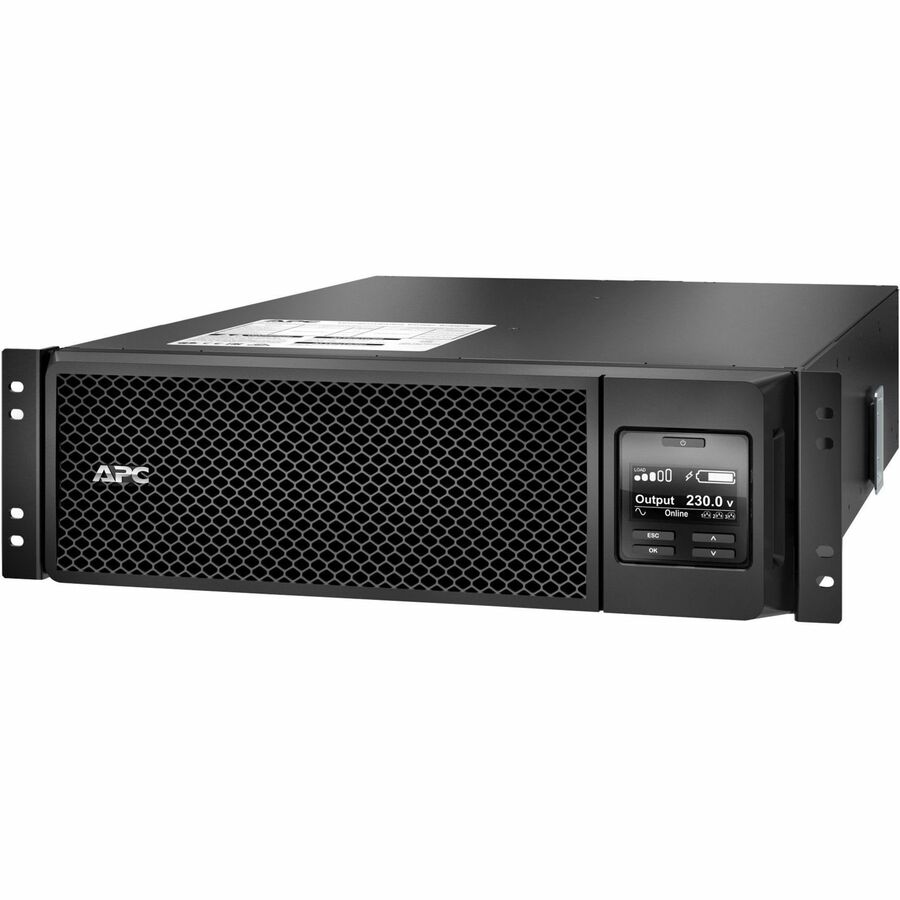

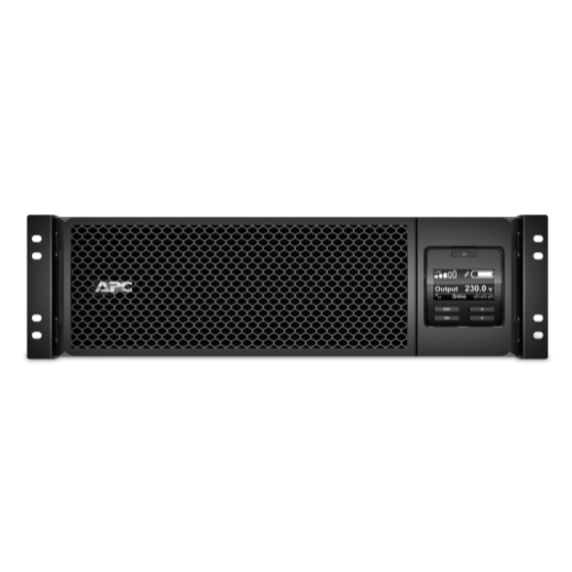

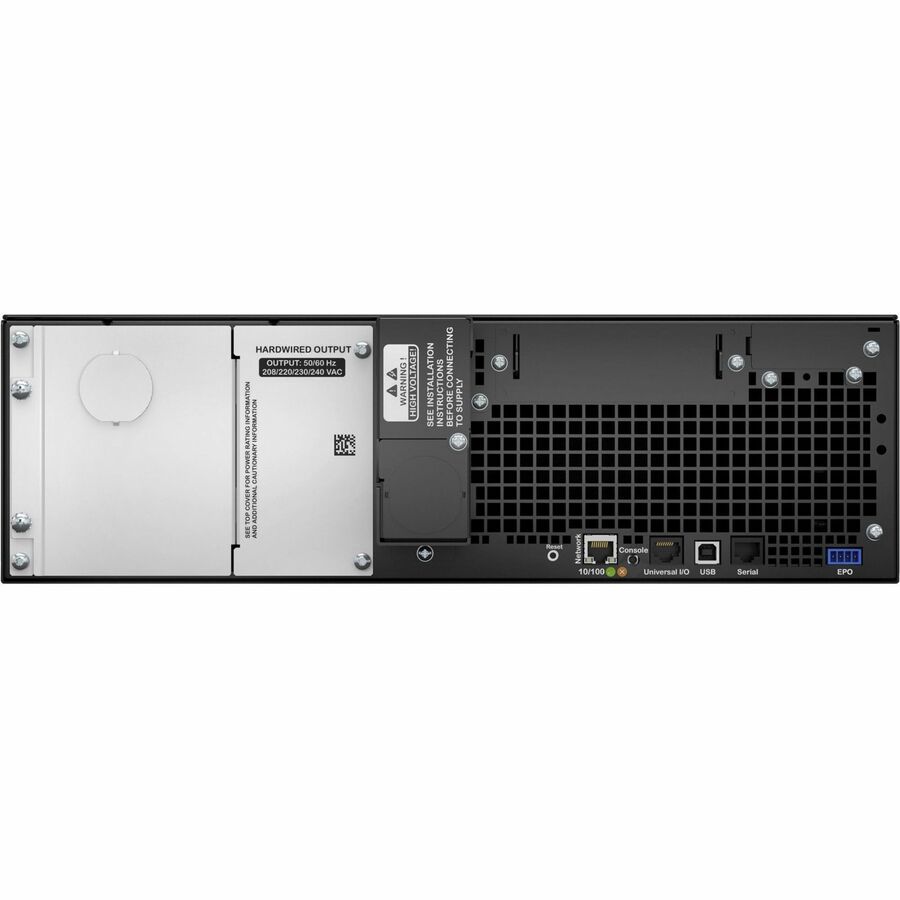

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 5 kVA/4.50 kW
APC SMART-UPS SRT 5000VA RM 208/230V HW
Technical infomations
| Backup/Run Time (Full Load) | 4 Minute |
| Brand Name | APC by Schneider Electric |
| Depth | 719 mm |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Height | 130 mm |
| Input Voltage | 208 V AC |
| Input Voltage | 230 V AC |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (W) | 4.50 kW |
| Load Capacity | 5 kVA/4.50 kW |
| Manufacturer Part Number | SRT5KRMXLW-HW |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Marketing Information | A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. |
| Output Voltage | 208 V AC |
| Output Voltage | 230 V AC |
| Product Family | Smart-UPS |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 5000VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Rack Height | 3U |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G) |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + G) |
| Receptacle Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Typical Battery Recharge Time | 1.50 Hour |
| Weight (Approximate) | 55.79 kg |
| Width | 432 mm |
