Filter Products
GTIN Code 0882658733437
*Non contractual photo
GTIN Code 0882658733437

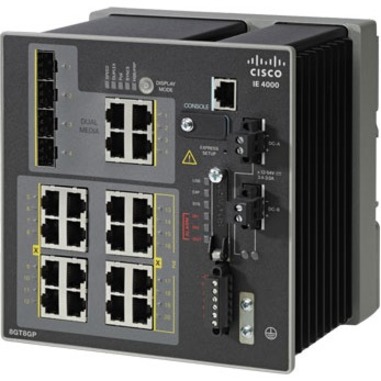

Cisco 4000 20 Ports Manageable Layer 3 Switch - 10/100/1000Base-T
4 X 1G COMBO LAN BASE
Technical infomations
| Brand Name | Cisco |
| Bypass | No |
| Depth | 129.3 mm |
| Ethernet Technology | Gigabit Ethernet |
| Flash Memory | 128 MB |
| Height | 155.4 mm |
| Layer Supported | 3 |
| LRE Port | No |
| Manageable | Yes |
| Management Port | No |
| Management |
|
| Manufacturer Part Number | IE-4000-16GT4G-E |
| Manufacturer Website Address | http://www.cisco.com/global/fr/ |
| Manufacturer | Cisco Systems, Inc |
| Marketing Information | Developed specifically to withstand the harshest industrial manufacturing environments, these switches offer today's most flexible and scalable industrial Ethernet platform that will grow with your network. The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. |
| Media Type Supported | Twisted Pair |
| Memory Card Supported | SD |
| Memory Technology | DRAM |
| Modular | No |
| MTBF | 558630 Hour |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 20 |
| PoE (RJ-45) Port | No |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Uplink |
| Power Source | Power Supply |
| Product Family | 4000 |
| Product Name | 4000 Layer 3 Switch |
| Product Series | 4000 |
| Product Type | Layer 3 Switch |
| Standard Memory | 512 MB |
| Token Ring Port | No |
| Total Number of Network Ports | 20 |
| Uplink Port | Yes |
| USB | No |
| Weight (Approximate) | 2.88 kg |
| Width | 155.4 mm |
