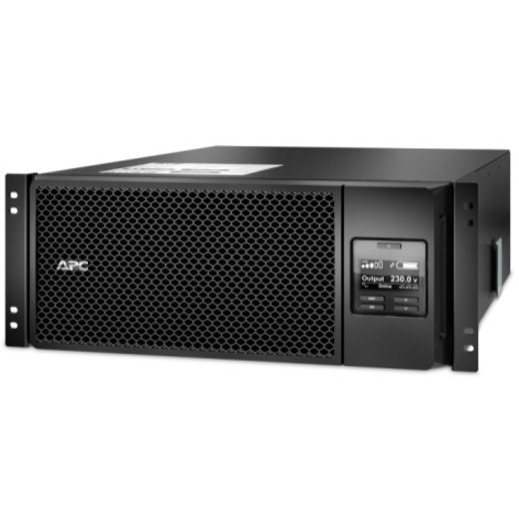

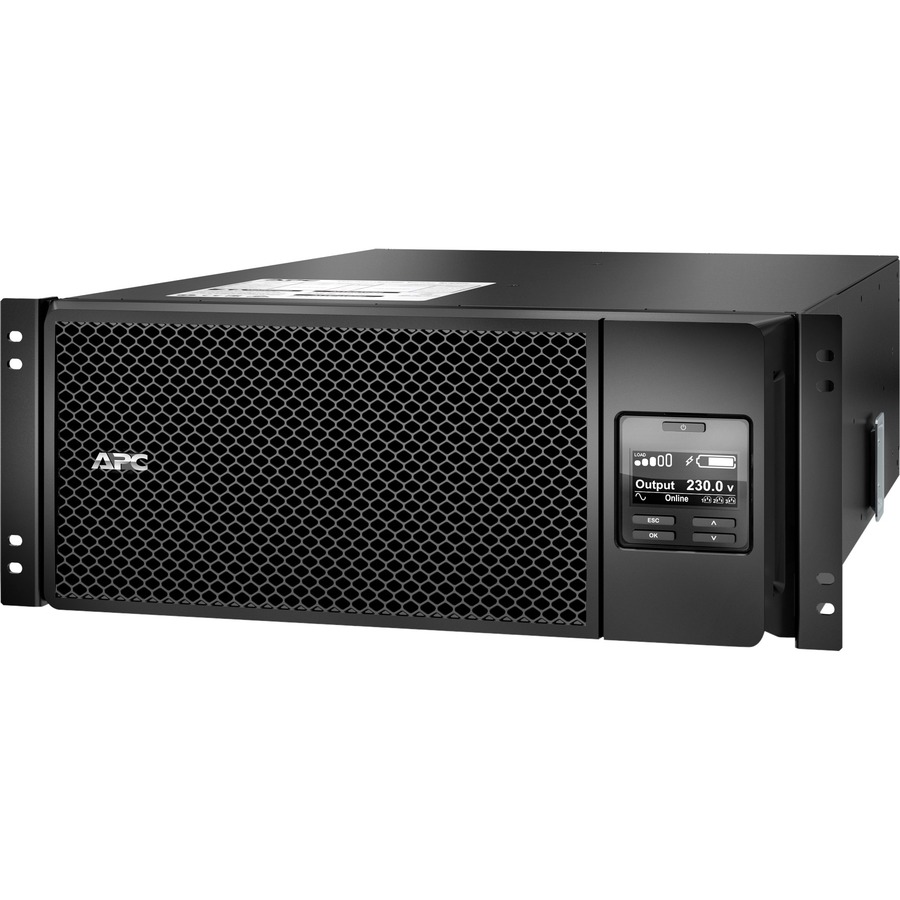

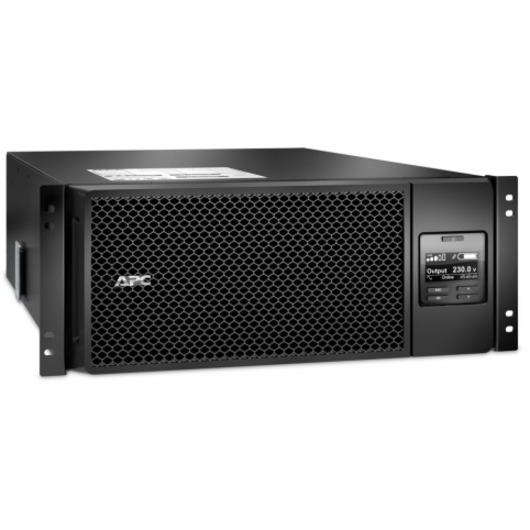

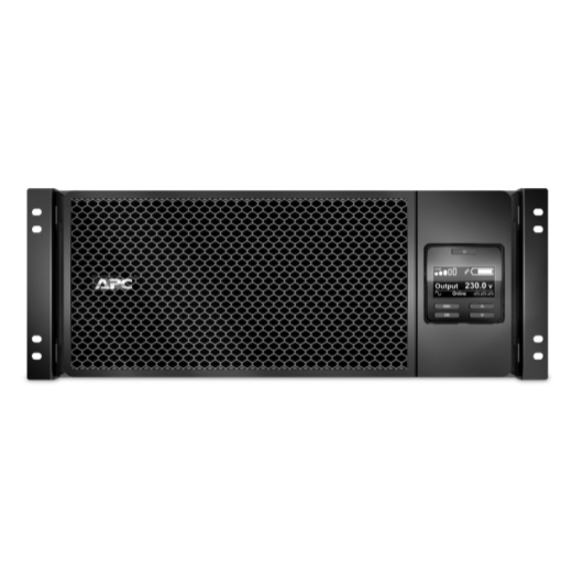

APC by Schneider Electric Smart-UPS SRT Double Conversion Online UPS - 6 kVA/6 kW
APC MARINE SMART-UPS ON-LINE - ONDULEUR (MONTABLE SUR RACK / EXTERNE) - CA 220/230/240 V - 6000 WATT - 6000 VA - ETHERNET, SERIAL - CONNECTEURS DE SORTIE : 10 - 4U - POUR P/N: AR3103, AR3103SP, AR3106SP, SRT192RMBP2US, SRT192RMBPUS, SRT2200XLI-KR, SRT72RM
Technical infomations
| Backup/Run Time (Full Load) | 3 Minute |
| Brand Name | APC by Schneider Electric |
| Depth | 719 mm |
| Environmentally Friendly | Yes |
| Form Factor | Tower/Rack Convertible |
| Height | 174 mm |
| Hot Swappable | Yes |
| Input Voltage Range | 160 V AC - 275 V AC |
| Input Voltage | 230 V AC |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (W) | 6 kW |
| Load Capacity | 6 kVA/6 kW |
| Manufacturer Part Number | SRT6KRMXLIM |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Marketing Information | High availability, ruggedized power protection for shipboard and other transportation applications. Mobile applications present their own unique challenges. Resilience to elevated levels of vibration, conformance to international maritime regulations, such as DNV, enhanced electric hazard protection and ruggedized enclosure are just a few features that are commonly required in mobile applications. APC by Schneider Electric offers customized solutions to meet the demanding requirements for marine, shipboard and other mobile applications. |
| Network (RJ-45) | Yes |
| Output Voltage | 230 V AC |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Product Family | Smart-UPS SRT |
| Product Line | Smart-UPS SRT |
| Product Name | Smart-UPS SRT 6000VA RM 230V Marine |
| Product Type | Double Conversion Online UPS |
| Rack Height | 4U |

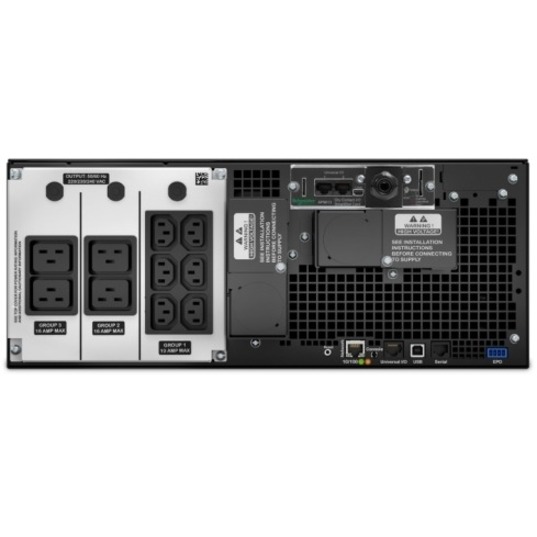

| Receptacle Detail | 1 x Hard Wire 3-wire (H N + G) |
| Receptacle Detail | 2 x IEC Jumper |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC Jumper |
| Typical Battery Recharge Time | 1.50 Hour |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 60 kg |
| Width | 432 mm |
